[4.20] - August 16, 2023

Last Updated: August 27, 2024 05:59

DSM_4.20_Release_Note.pdf
(1 MB)

Fortanix Data Security Manager (DSM) SaaS 4.20 comes with some exciting new features, general improvements, and resolved issues.

This release is superseded by the August 28, 2023, release.

NOTE

This release is for SaaS only and is not available for on-premises installations. Updates in this release will be part of a future on-premises release.

1. New Functionality/Feature(s)

1.1 Added a new app-based authentication for Google Workspace CSE (JIRA: PM-29):

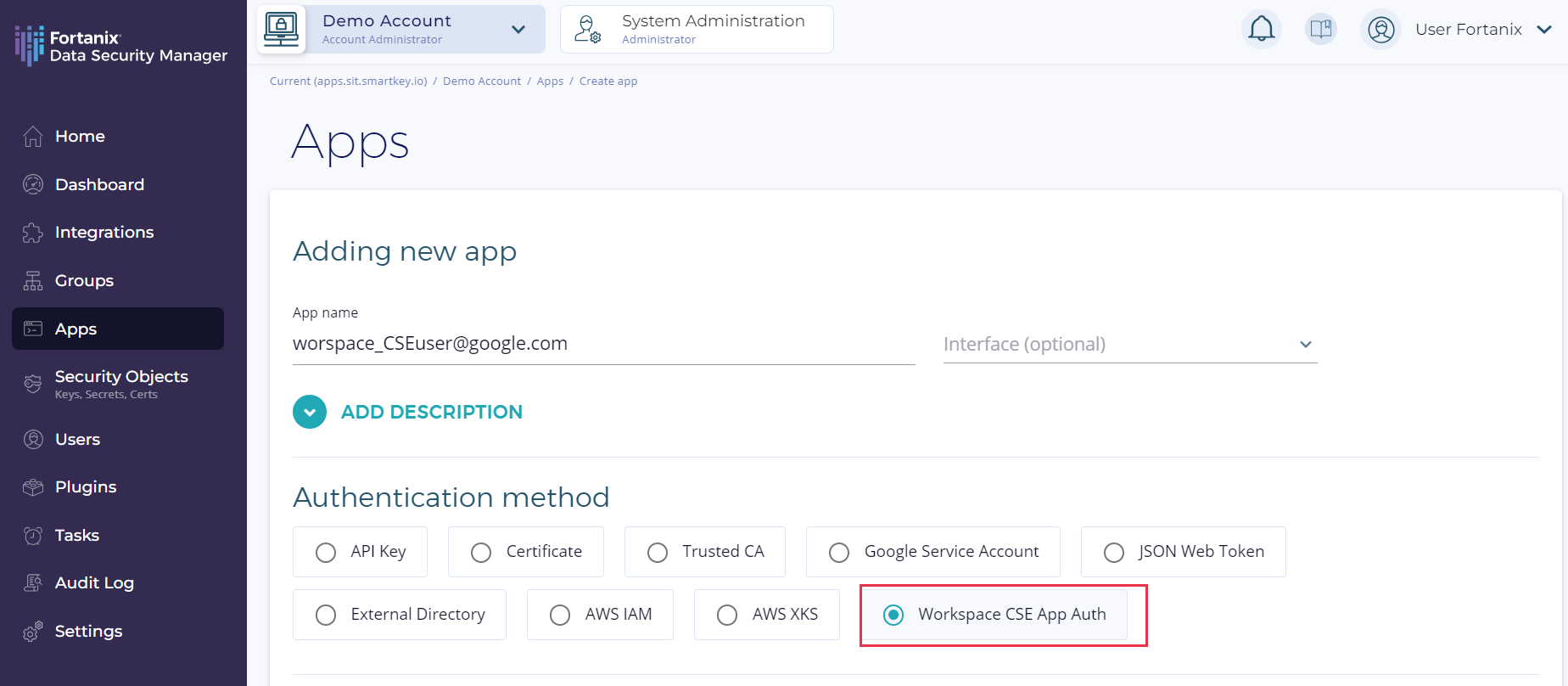

With this release, DSM account administrators can select between the existing user-based authentication and the new app-based authentication in the Google Workspace CSE easy wizard, allowing the Google Workspace users to only access the CSE-related endpoints without having to accept a DSM user invitation or verify their e-mail address. Outside of the easy wizard, this can be done by selecting the new app authentication type ”Workspace CSE App Auth“ when adding new Google Workspace users as applications in the DSM Apps tab.

For more details, refer to the Integration Guide: Fortanix DSM with Google Workspace CSE.

2. Enhancements to Existing Features

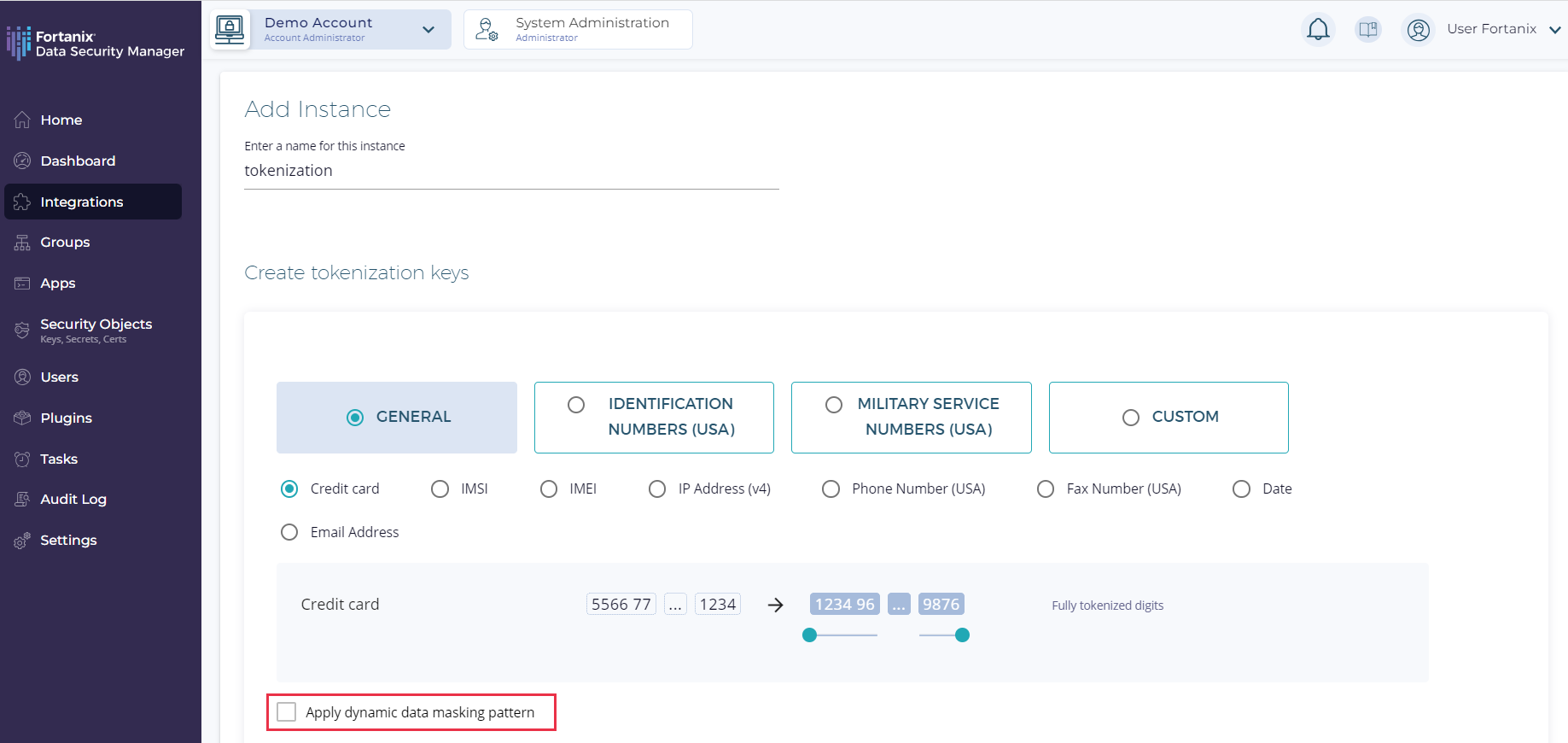

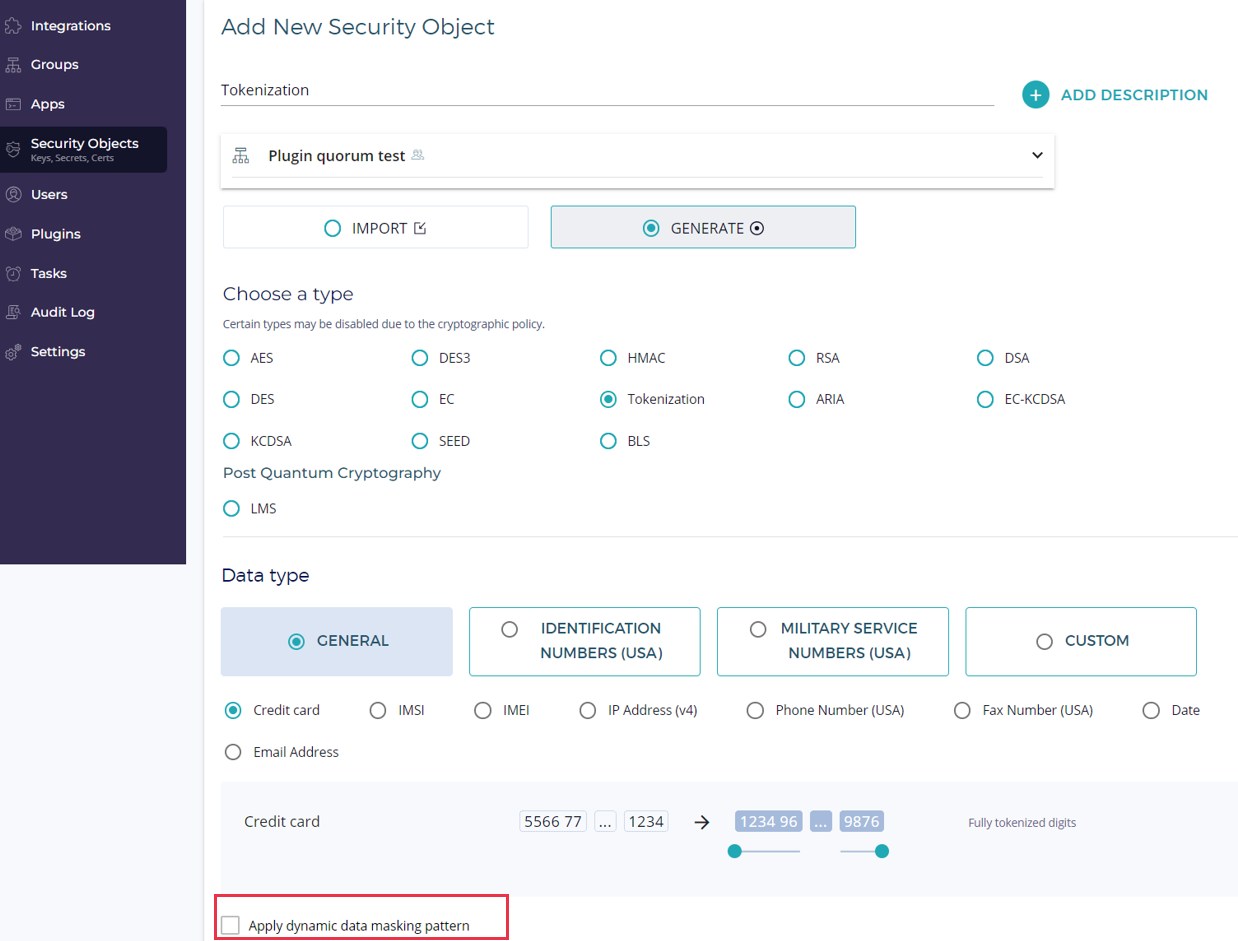

Renamed “Add masking pattern” to “Apply dynamic data masking pattern” in the generate or import security object of type Tokenization workflow and in the Snowflake integration workflow (JIRA: PM-71).

For more details, refer to the User's Guide: Tokenization.

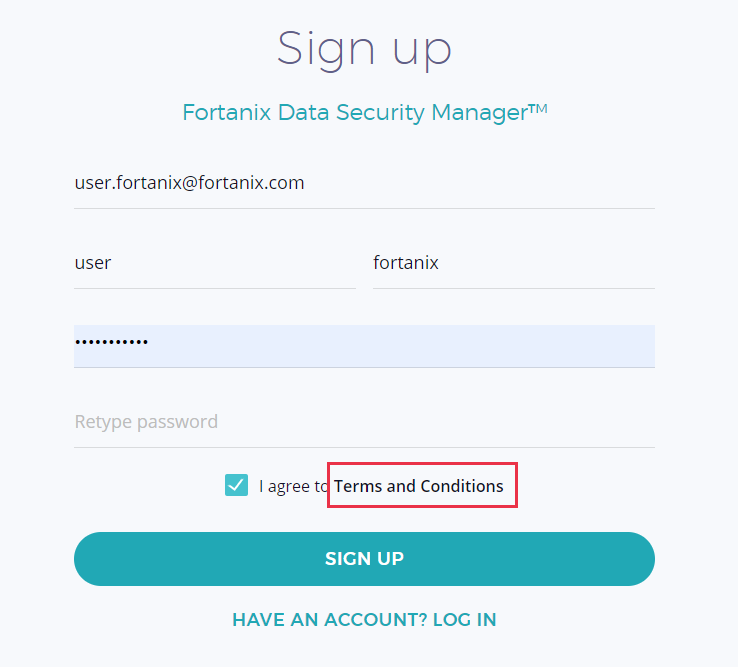

Updated the “Terms and Conditions” link on the SaaS Sign-up page to point to the “Fortanix DSM SaaS Terms of Use” on the Fortanix Website (JIRA: ROFR-4220)..

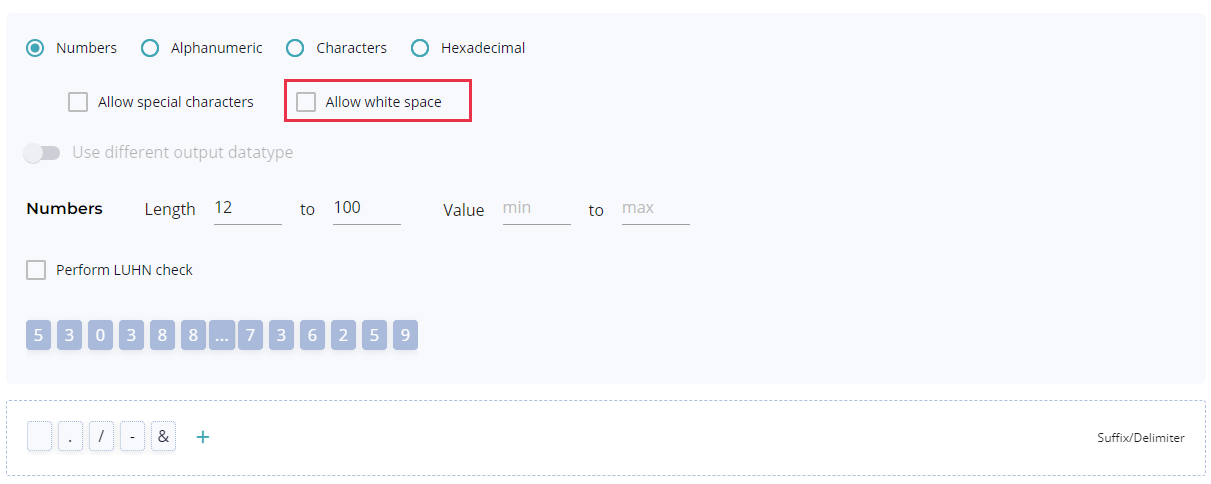

Added a new check box “Allow white space” for Custom tokens of type Numbers, Alphanumeric, or Characters (JIRA: ROFR-4210): By selecting the “Allow white space” option, users can add whitespaces as characters anywhere in the token.

For more details, refer to the User's Guide: Tokenization.
Added support to store and automatically select the last selected DSM account ID when the user again logs in to Fortanix DSM (JIRA: ROFR-4203):

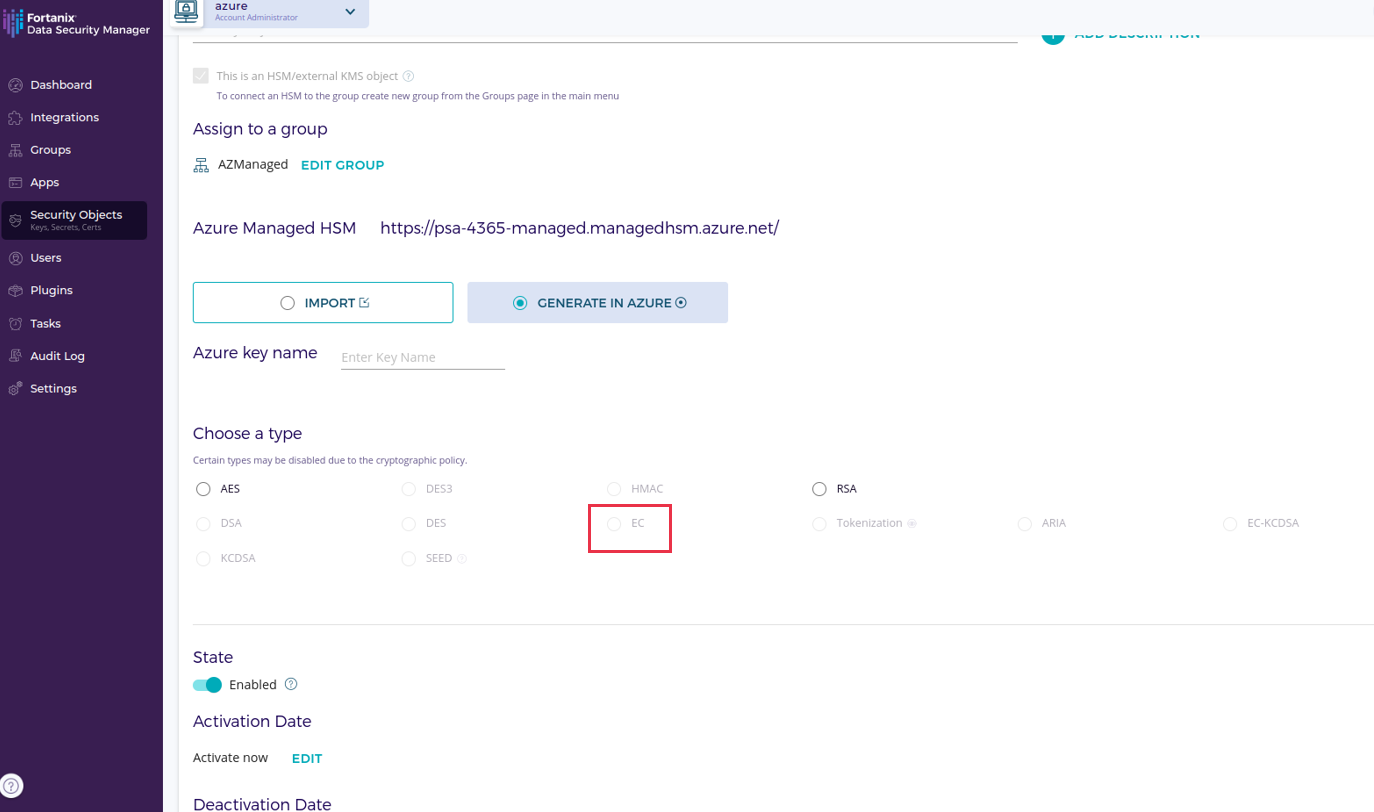

Disabled EC key for Azure Managed HSM group (JIRA: ROFR-4192)

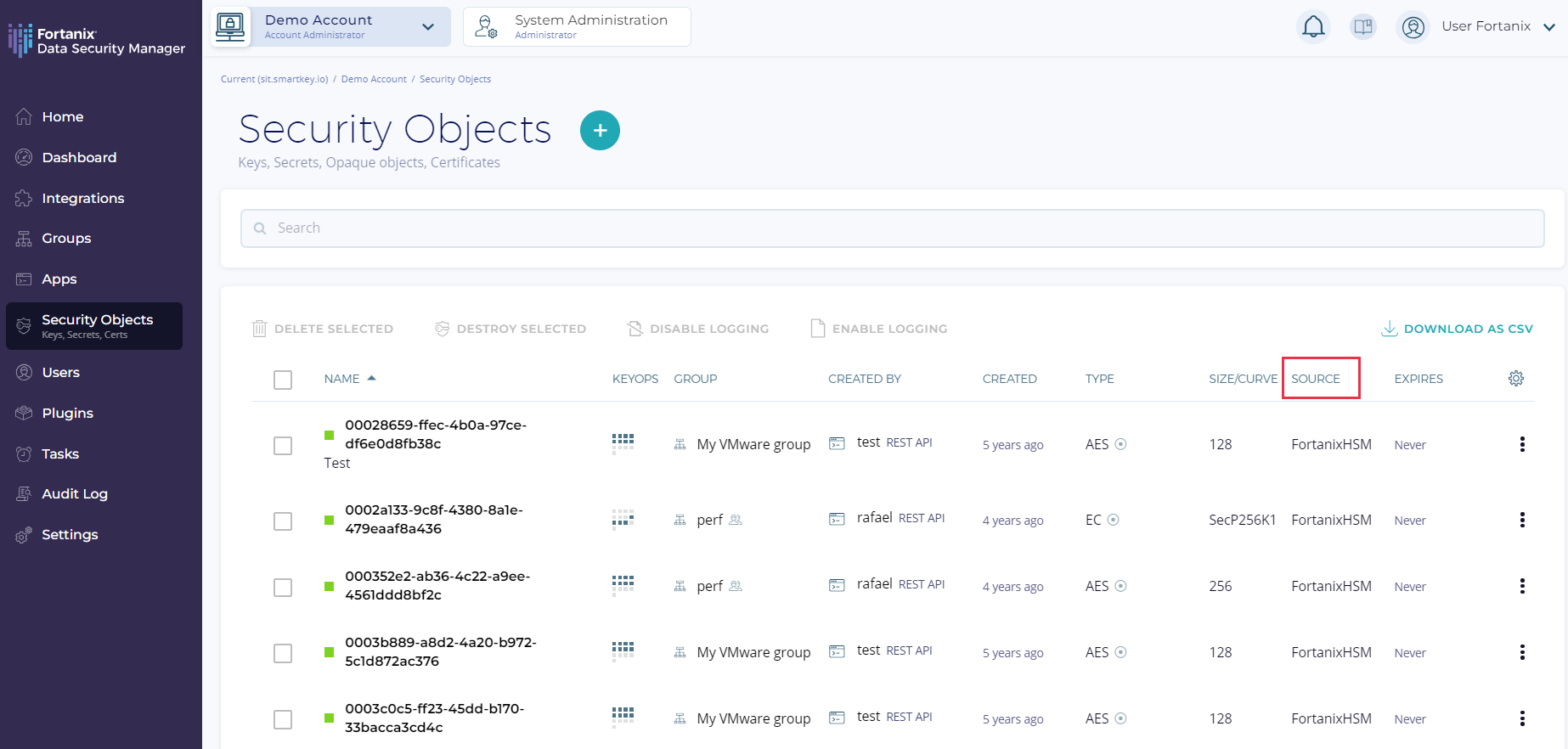

Added the “Source” Column to the Security Object list view (JIRA: ROFR-4161)

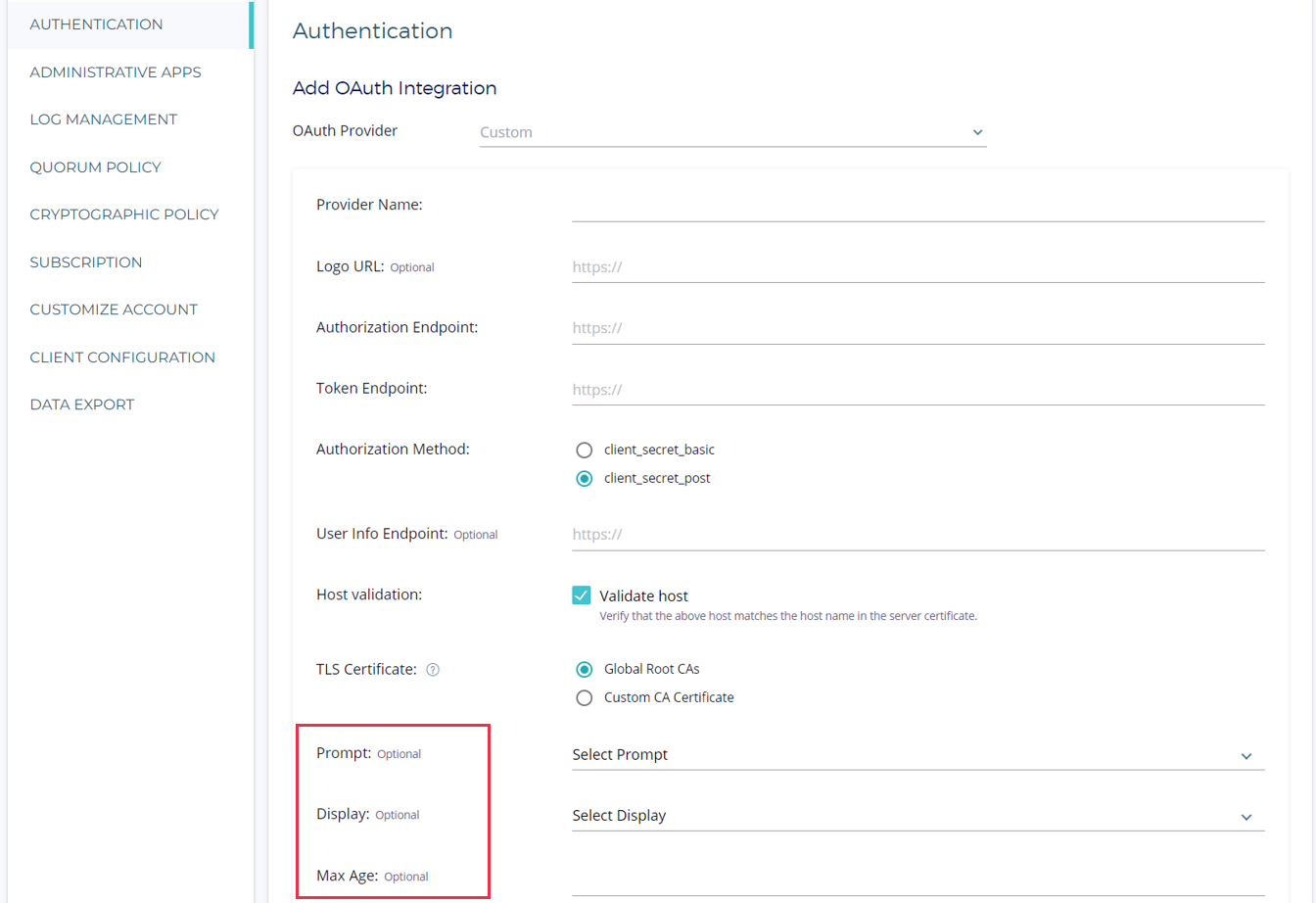

Added the new optional fields: Prompt, Display, and Max Age to the OAuth Single Sign-On configuration form on the DSM Account Settings -> Authentication page. The default value for the Prompt field will be Consent. (JIRA: ROFR-3249).

For more details, refer to the User’s Guide: Authentication.

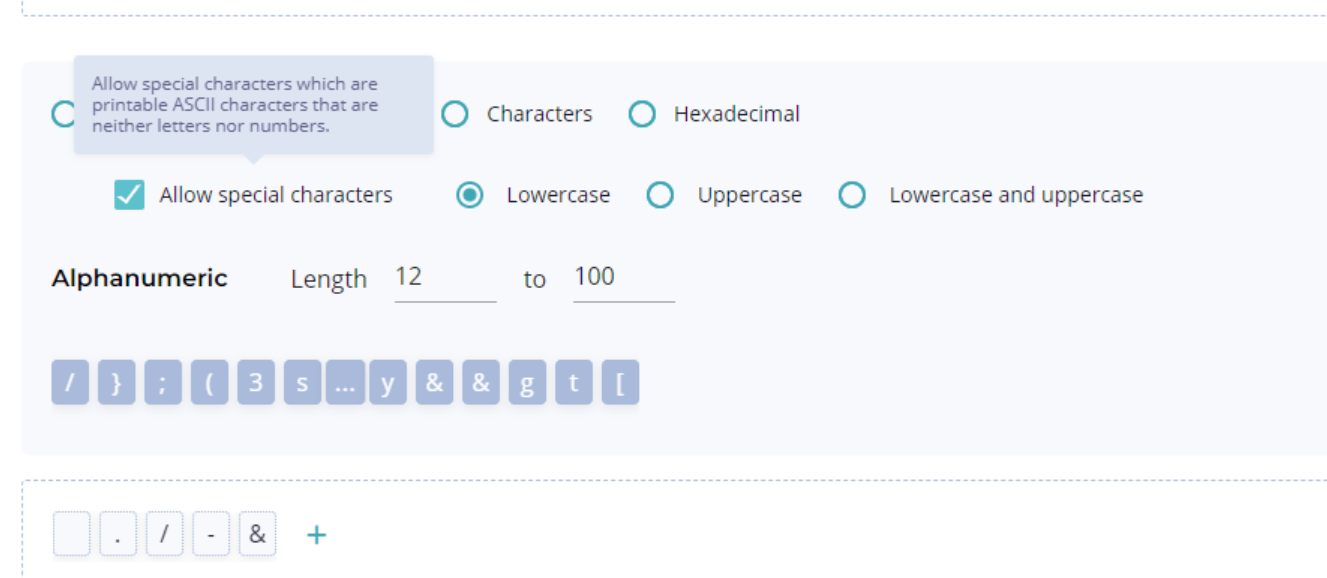

Added Tooltip to clarify the “Allow special characters” check box for the create tokenization security object of type “Custom” (JIRA: ROFR-4282)
Updated the Data Custodian plugin title to “SAP Data Custodian” (JIRA: PROD-6742).
Added support to sort the security objects custom attributes in the CSV report (JIRA: ROFR-4186).

3. Other Improvements

Added support for graceful fallback for tokenization types if the FPE pattern for the tokenization object returned from the API response does not match the predefined pattern saved in DSM UI (JIRA: ROFR-4211).
Updated the readme file for the PGPSign script to add missing text (JIRA: PROD-6510).
Added Open API documentation for cryptographic APIs (JIRA: PROD-6305).

4. Integrations

Fortanix DSM now supports integration with SAP for Tokenization (JIRA: IX-16). For more details, refer to Fortanix DSM with SAP S/4 HANA
Fortanix DSM now supports integration with Cassandra TDE (JIRA: EXTREQ-871). For more details, refer to Fortanix DSM with Cassandra TDE

5. Bug Fixes

Fixed an issue where the auth_params field was not accessible from the discover endpoint (JIRA: PROD-7102).
Fixed an issue where the locate by custom attributes operation on security objects returns 1001 keys instead of 1000 keys (JIRA: PROD-7087).
Fixed an issue where the DSM-Accelerator JCE Provider script had hardcoded values for the DSM version number (JIRA: PROD-7067).
Fixed an issue where the style of the DELETE SELECTED, ENABLE LOGGING, DISABLE LOGGING, DESTROY SELECTED, and DOWNLOAD CSV buttons are broken for the security object row in the Security Objects table (JIRA: ROFR-4209).
Fixed an issue where the security object count on the Security Objects page did not match the count in the Security Object tab in the detailed view of the Group (JIRA: ROFR-4196).
Fixed an issue where the Azure Tags section was showing under the Custom Attributes section instead of showing as separate sections in an Azure Managed HSM-backed group detailed view (JIRA: ROFR-4193).
Fixed an issue where the Export permission was not disabled for AES, RSA, and EC keys in an Azure Managed HSM-backed group (JIRA: ROFR-4191).
Fixed an issue where the user could not enter different values for the Azure key name and GCP key name fields when copying a key from a regular group to an Azure Managed HSM and GCP group simultaneously (JIRA: ROFR-4189).
Fixed an issue where creating an Azure-backed group without a client secret can result in panic later (JIRA: PROD-6939).
Fixed an issue where unsupported keys were not disabled during key creation in an Azure Managed HSM group (JIRA: ROFR-4187).
Fixed an issue where the Key Encryption Key (KEK) feature was not disabled for an HSM/external KMS group (JIRA: ROFR-4164).
Fixed an issue where a security object name with 60 characters overlaps on the COPY KEY and CREATE NEW KEY buttons on the right of the security object detailed view (JIRA: ROFR-4156).
Fixed an issue where the user was unable to purge an Azure key in DSM (JIRA: PROD-5659).
Fixed an issue where when a user hovers over a security object row in the SECURITY OBJECTS tab in the group detailed view, the blue row selection indicator appeared too close to the check box for the row (JIRA: ROFR-4232).
Fixed an issue where a user was unable to edit another user’s role using the “EDIT USER ROLE” option in the USERS tab in the detailed view of a group (JIRA: ROFR-4325).
Fixed the certificate import bug in the Fortanix DSM JCE Provider KeyStore (JIRA: PROD-7051).

6. Known Issues

The DSM login page is shown briefly after performing an SSO login (JIRA: ROFR-4148).
exclude does not work in the proxy config for operations such as attestation (JIRA: PROD: 3311).
The sync key API returns a “400 status code and response error” if its short-term access token expires during the synchronization of a group linked to AWS KMS (JIRA: PROD-3903).
Workaround: increase the timeout of the temporary session token beyond the expected duration of the sync key operation.
Rotating a GCP BYOK key to a pre-existing Fortanix DSM-hosted key (Rotate to DSM key) is not supported (JIRA: PROD: 6722).
Workaround: You can manually copy an existing AES 256 key from a normal DSM group to a GCP-backed group. This key automatically becomes the currently active crypto key version in the GCP key ring
The “Rotate linked key” feature fails with an error for keys in an externally backed group where the external entity is a Google Cloud Platform key ring (JIRA: PROD-6828).
Workaround: You must first manually rotate the source key in the regular DSM group and then copy the rotated key to the GCP group.
An Azure Managed HSM external KMS group now also allows the following security object types to be generated or imported. But the Bring Your Own Key (BYOK) and rotate key functionality does not work for these security object types (JIRA: ROFR: 4192).
- EC
- AES 128 and AWS 192
Workaround: Do not generate or import security objects of type EC, AES 128, and AES 192 in an external KMS group of type Azure Managed HSM since the only allowed security object types for an Azure key generated using the Generate or Import key workflows are:
- RSA key pairs ( RSA_2048, RSA_3072, and RSA_4096).
- AES 256
An Azure Managed HSM external KMS group now also allows the following security object types to be generated or imported. But the Bring Your Own Key (BYOK) and rotate key functionality does not work for these security object types (JIRA: ROFR: 4192).
- EC
- AES 128 and AES 192
Workaround: Do not generate or import security objects of type EC, AES 128, or AES 192 in an external KMS group of type Azure Managed HSM since the only allowed security object types for an Azure key generated using the Generate or Import key workflows are:
- RSA key pairs ( RSA_2048, RSA_3072, and RSA_4096).
- AES 256
If an Azure key is rotated and then soft-deleted, only one version of the key is soft-deleted (JIRA: PROD: 6947).
Workaround: Perform a key scan in DSM to synchronize the key state with Azure.

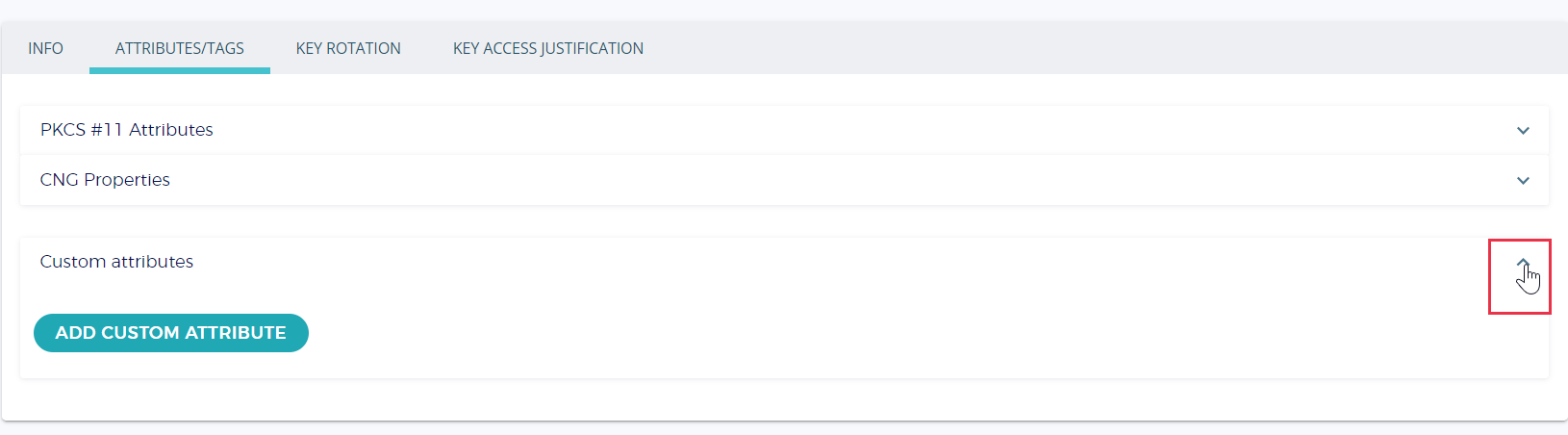

Unable to add Custom Attributes for a Fortanix DSM security object from its detailed view (JIRA: ROFR-4252).
- Clicking the ADD CUSTOM ATTRIBUTE button does not load the Label and Value fields.
  Workaround: Click the drop down for the “Custom attributes” section twice to load the Label and Value fields.
- When you type a label of the custom attribute, the text box loses focus.
  Workaround: Enter the label of the custom attribute again for the second time to add the custom attribute successfully.
Increasing the “Retention period for Audit Logs” setting at the account level duplicates the “purge audit log” message in the audit logs (JIRA: PROD-7031).
Users will see the "Not a HSM group" error message while deleting the HSM/KMS group from the FIPS-backed group (JIRA: ROFR-4245).
The create operation for security object creation does not work for the Azure Managed HSM plugin (JIRA: PROD-7078).
The AWS Key Policy section alignment moved from the bottom of the security object detailed view to the right side of the page. This is a cosmetic issue only (JIRA: ROFR-4241).
Users without two-factor authentication do not see the pop-up message “Unable to select this account. Reason: Two-factor authentication is required for this operation” when they select an account that has two-factor authentication configured (JIRA: ROFR-4238).
The retry mechanism does not work as expected in the DSM-Accelerator Webservice (JIRA: PROD-7068).
The SUBMIT button is not disabled when no Security Objects are selected or all security objects are in a disabled state and the user checks the Rotate linked key check box (JIRA: ROFR-4233).
The SUBMIT button is not disabled when no Security Objects are selected or all security objects are in a disabled state and the user checks the Rotate linked key check box (JIRA: ROFR-4233).
When the Batch Sign operation is performed for Curve Ed25519/X25519 in DSM-Accelerator Webservice, the status code is showing as 500 instead of 400 (JIRA: PROD-7007).
When a user logs in to a DSM account with Azure OAuth login details where the account was configured with the OAuth Single Sign-On authentication method with “No Roles can login with password” option, it redirects the user again to the Azure OAuth login page again instead of redirecting to the selected account (JIRA: ROFR-4298).
When a key is soft-deleted from the DSM Azure Key Vault Cloud Data Control (CDC) group, the “Purge deleted key” button is not visible in the UI (JIRA: PROD-7202).
Rotating a linked AWS KMS key when the source key in a regular DSM group is rotated, does not display the modal window to confirm the linked key rotation (JIRA: ROFR-4324).
The “Copy Key” feature for LMS key results in an error (JIRA: PROD-7336).
